# Two-component applications# Plastic coatings# Auto refinish coatings
# Automobile, motorcycle ; base coat and top coat# Heavy duty coatings
Colorless to slightly yellowish clear liquid
1400 mPa .s at 25°C
NCO equivalent weight
Density at 20°c
These values provide general information and are not part of the productspecifications.
Stability / thinnability:

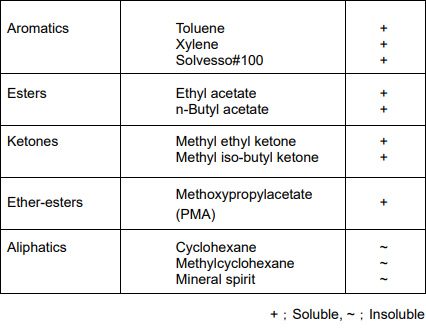

DURANATETM TPA-100 can be thinned with esters,
ketones and aromatichydrocarbons such as ethyl acetate, butyl acetate, methoxypropylacetate(PMA), methylethyl ketone, methyl-butyl ketone, cyclohexanone,toluene, xylene, Solvesso #100 andmixture thereof. Generally speaking, it has good compatibility with thesolventmentioned. However, the solutions formed must be tested for their storage stability.Only PU grade solvents can be used (max. 0.05% water, absence of reactive groupssuch as hydroxyl or amines groups). Aliphatic hydrocarbons such as hexane.cyclohexane, methylcyclohexanes and mineral spirits, are unsuitable as solventsbecause of their poor solubility.
DURANATETM TPA-100 should not be thinned to below a solid content of 40%.Prolonged storage of solution with lower solid content may result in turbidity andsedimentation.

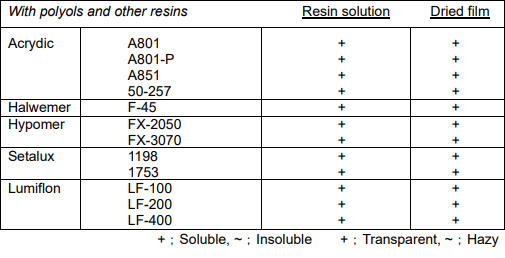

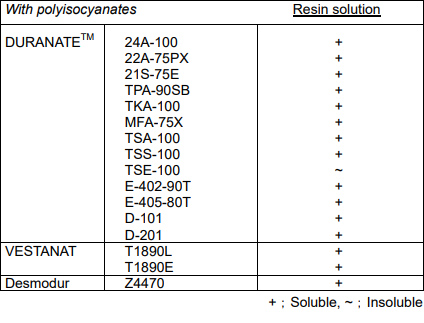

Mixing ratio of DURANATETM TPA-100 with polyols is based on NCO/OH equivalentratio of 1/1.
DURANATETM TPA-100 is sensitive to moisture and should therefore always be storedin sealed containers.

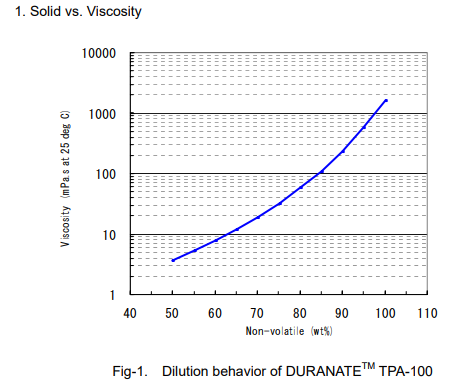

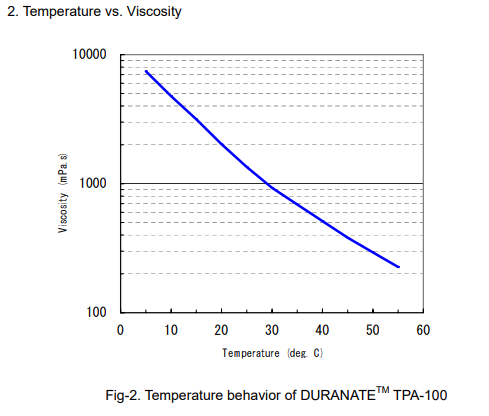

Characteristics of iscosity:

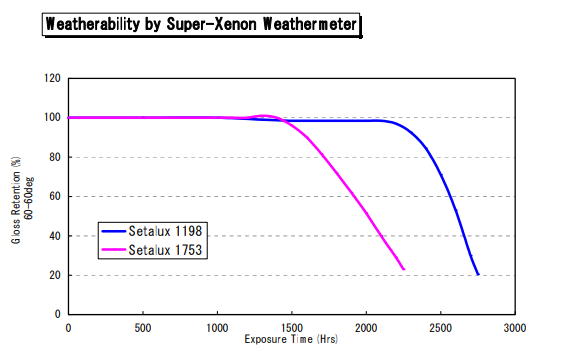

Fig-3. Weatherability of DURANATETM TPA-100 with acrylic polyol
Polyol; Setalux 1198 & 1753 (Nuplex Resins)Weathered by Super-Xenon Weathermeter
